# Chapter 3 : Drawables for charts

## Surfaces

There are several ways to build a surface:

- providing its mathematical form, with an X and Y range.
- providing input points that should be used to generate the surface polygons.
- providing input polygons that define the surface.

### Surface defined by a function

The simplest way of providing data to plot is to implement a `Mapper`

, which basically represents a mathematical function to be used by a `GridBuilder`

. The mapper generates the input coordinates that allow a `Tessellator`

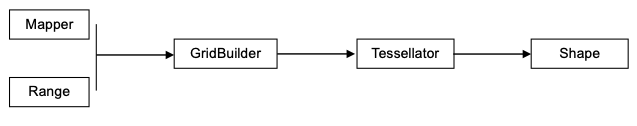

to build polygons :

This sequence is wrapped in the `SurfaceBuilder`

class, which is demonstrated in the surface tutorial.

This sequence can be customized by any other strategy as soon as one is finally able to build a collection of `Drawable`

object.

#### Mappers

A `Mapper`

is an abstract class that requires its method `f(double x, double y)`

to be implemented. The most simple mapper implementation may implement the mathematical function as follow:

```
Mapper mapper = new Mapper(){
public double f(double x, double y) {
return Math.sin(x)*Math.cos(y);
}
};
```

Note that although a `Mapper`

let you use double types for x, y and z, the `Coord3d`

structure used by all drawables holds float values. The reason is that `float`

precision is largely sufficient for the purpose of chart rendering, and uses less memory for a large number of `Coord3d`

.

##### Example Mapper based on an image content

The `BufferedImageMapper`

is a `Mapper`

implementation returning z values computed from the pixel colors of an image, where each {x,y} is a pixel index.

```
public double f(double x, double y) {
if (x == Double.NaN || y == Double.NaN)
return Double.NaN;
int rbg = image.getRGB((int) x, (maxRow) - ((int) y));
float red = (float) ((rbg >> 16) & 0xFF) / 255.0f;
float green = (float) ((rbg >> 8) & 0xFF) / 255.0f;
float blue = (float) ((rbg) & 0xFF) / 255.0f;
return ((double) ((red * 0.3f) + (green * 0.59f) + (blue * 0.11f)));
}
```

See the `ChromatogramDemo`

in package demos.surface.big.

##### Example Mapper based on surface regression

Svm3d is an extension allowing to define mappers through a set of training points. The green points on the picture below form a training set for a SVM regression model. Once this model is trained, it is able to return a Z value for any point in {X,Y} space:

```
public double f(double x, double y) {
return svm.apply(x, y)[0];
}
```

This mapper can be seen as an alternative as using the later mentioned Delaunay tessellator. `SvmMapper`

has the advantage of delivering surface with a user choosen grid with possible high resolution and smooth curves. However it might require spending time on SVM parameter tuning.

#### Grids

A `Grid`

is able to use a `Mapper`

to generate 3d coordinates. Their actual implementation can generate any mesh as soon as their exist a `Tessellator`

able to handle their output. In the example below, we generate points standing on an orthogonal grid, for an identical X and Y range, with 50 grid steps:

```
Range xrange = new Range(-150, 150);
Range yrange = new Range(-150, 150);
int steps = 50;
OrthonormalGrid grid = new OrthonormalGrid(xrange, steps, yrange, steps);
```

### Surface defined by input points

#### Tessellation

Tessellation is the process of creating polygons out of a set of input coordinates. Jzy3d supports several Tessellator strategies as explained hereafter.

##### Orthonormal tesselation

`OrthonormalTessellator`

is able to build surface polygons assuming the input data represents nodes of an orthogonal mesh.`RingTessellator`

is an extention of`OrthonormalTesselator`

that allows “cutting” a surface according to a min and max radius.

Tesselating a surface based on the preceding mapper and grid is simply achieved by calling:

```
Shape surface = new SurfaceBuilder().orthonormal(grid, mapper);
```

or

```
Shape surface = new SurfaceBuilder().ring(grid, mapper, 20f, 50f);
```

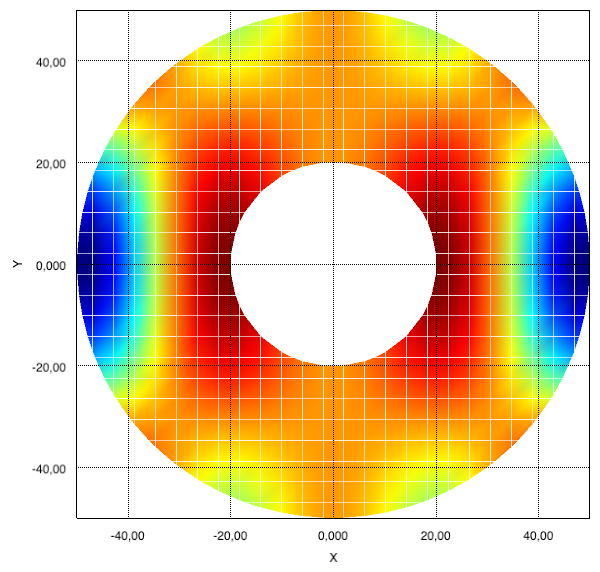

*See BookTesselationRing*

One may also build surfaces dedicated to large datasets. These are built using `CompileableComposite`

, a drawable object able to compile itself as an OpenGL display list, and then make use of this prebuilt GL code for all following rendering:

```
Shape surface = new SurfaceBuilder().orthonormalBig(grid, mapper);
```

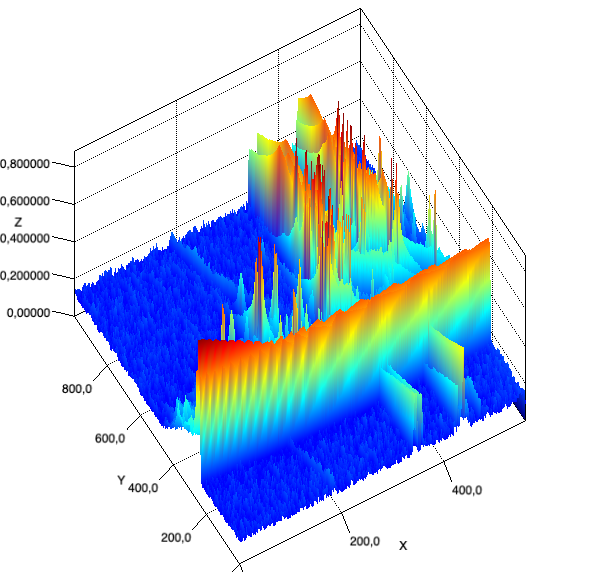

*See ChromatogramDemo*

### Delaunay: a constraint free surface tessellator

One may require to build a surface using a random set of points. For this use case, a Delaunay tesselator has been implemented using JDT to compute the tesselation of an unordered set of points.

Delaunay algorithm, which details won’t be covered here, is able to compute a good triangulation for points given as follow:

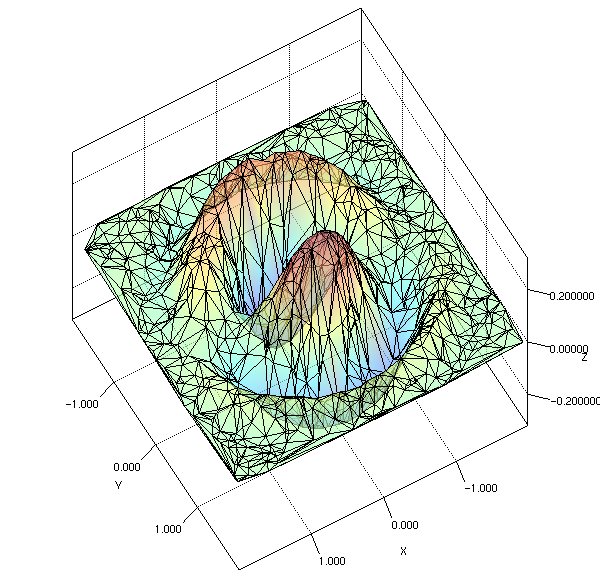

*See IncrementalDelaunayDemo in the demos.surface.delaunay package.*

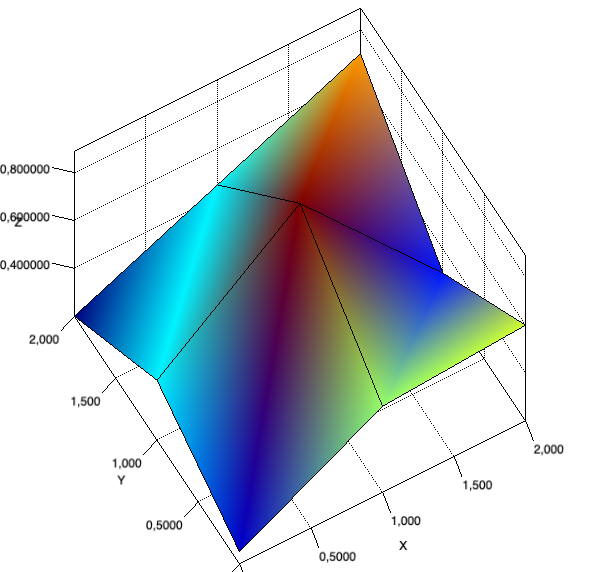

### Surface defined by polygons

You can build any shape by defining raw polygons by yourself as shown in the bellow code:

```
double [][] mesh = new double[][];// 3x3
List<Polygon> polygons = new ArrayList<Polygon>();
for(int i = 0; i < mesh.length -1; i++){
for(int j = 0; j < mesh[i].length -1; j++){
Polygon polygon = new Polygon();
polygon.add(new Point(new Coord3d(i, j, mesh[i][j]) ));
polygon.add(new Point(new Coord3d(i, j+1, mesh[i][j+1]) ));
polygon.add(new Point(new Coord3d(i+1, j+1, mesh[i+1][j+1]) ));
polygon.add(new Point(new Coord3d(i+1, j, mesh[i+1][j]) ));
polygons.add(polygon);
}
}
Shape surface = new Shape(polygons);
```

It is important to have only one Shape referencing a given list of polygons. Indeed, each polygon point holds its own color data, so when a Shape is modified by a color tool, each polygon’s point has its color field updated.

*See BuildSurfaceDemo*

## Scatters

Scatters are simple drawables coming in several flavors:

`Scatter`

: a scatter plot made of a single color, using`Coord3d[]`

and`Color[]`

as data model`MultiColorScatter`

: a scatter plot painted by a`Colormap`

, using`Coord3d[]`

as data model`MultiColorScatterList`

: a scatter plot painted by a`Colormap`

, using`List<Coord3d>`

as data model

The below code let you create a simple RGB scatter:

```
Coord3d[] points = new Coord3d[size];
Color[] colors = new Color[size];
for(int i=0; i<size; i++){
x = (float) Math.random() - 0.5f;
y = (float) Math.random() - 0.5f;
z = (float) Math.random() - 0.5f;
a = 0.25f;
points[i] = new Coord3d(x, y, z);
colors[i] = new Color(x, y, z, a);
}
Scatter scatter = new Scatter(points, colors);
```

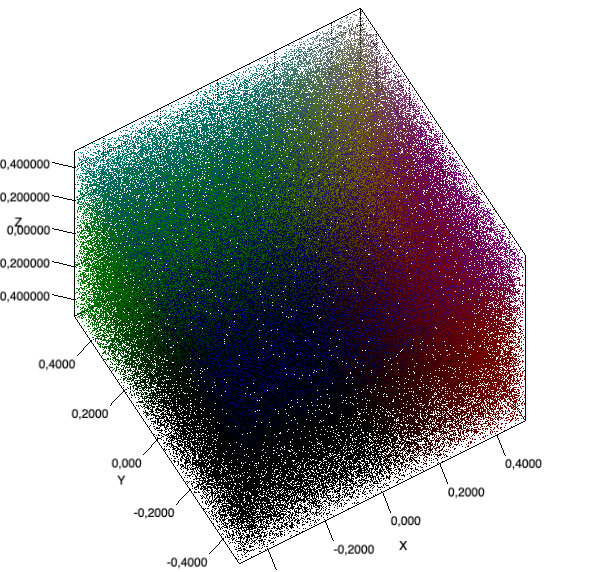

*See ScatterDemo, ScatterVBODemo, MultiColorScatterDemo, Scatter2D_EmulGLDemo, ScatterSphereDemo, ScatterCubeDemo*

## Histograms & bar charts

Bar charts can be build easily using `HistogramBar`

, which is basically a `Composite`

made of one `Tube`

and two closing `Disk`

. The below code shows how to create drawable bars:

```
HistogramBar bar = new HistogramBar();
bar.setData(new Coord3d(x, y, 0), height, 10, Color.random());
bar.setWireframeDisplayed(false);
```

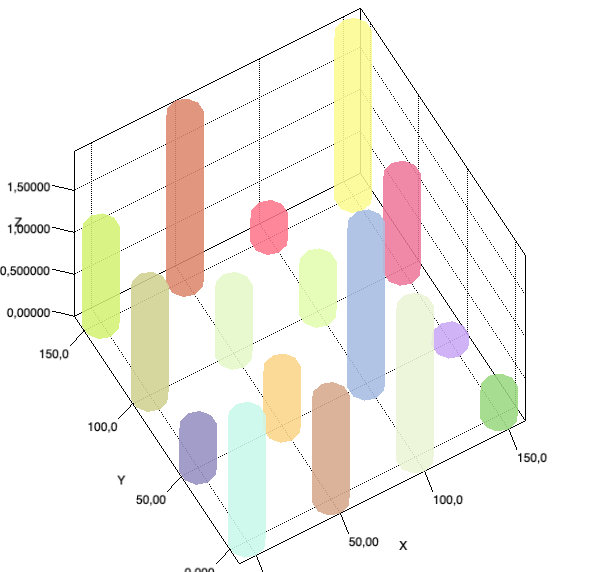

*See HistogramDemo, HistogramLightDemo*
