Package org.jzy3d.plot3d.primitives.vbo.drawable.loaders

Class VBOBufferLoaderForArrays

java.lang.Object

org.jzy3d.plot3d.primitives.vbo.drawable.loaders.VBOBufferLoader

org.jzy3d.plot3d.primitives.vbo.drawable.loaders.VBOBufferLoaderForArrays

All Implemented Interfaces:

IGLLoader<DrawableVBO2>

public class VBOBufferLoaderForArrays
extends VBOBufferLoader
implements IGLLoader<DrawableVBO2>

A utility class to build buffers to feed a DrawableVBO2. Reading VBO javadoc may be helpful as well Not all parameters are mandatory, so we depict the effect of providing or not some of them.

Points

This holds the x,y,z coordinates and is mandatory.

Colors

The loader can be given

• A non null colormap with null colors array
• A non null color array with null colormap
• None of the above, in that case, the color will uniform to the whole drawable
• If both colormap and colors are given, an exception is thrown.

Normals

Normals allow processing light. There are four modes

• invalid @link

  NormalMode.REPEATED

  lead to autonomous processing of normals where each polygon get a single normal processed for the whole geometry (but the normal is repeated for each point).
• invalid @link

  NormalMode.SHARED

  lead to autonomous processing of normals where each point get a normal processed as the average normal of all the polygons it belongs to.
• A normal array can be provided externally to rely on other algorithms.
• If neither Normal.NormalMode neither a normal array are provided, no normal is will be buffered in the VBO.

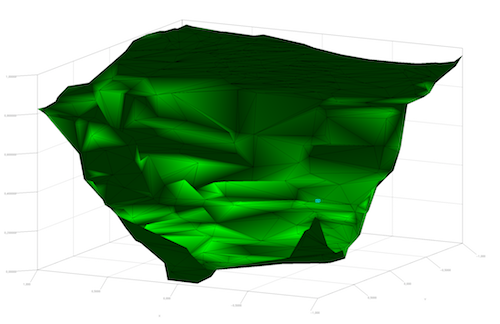

We observed that when no normal is processed at all, there is still an automatic processing of light "somehow". This is enabled by toggling DrawableVBO2.setComputeNormals(boolean) to false. In that case, the result looks like :

Elements

Elements are optional and are used to avoid repeating intput points. In that case, geometries are defined by the indices and the point they refer to.

Author:

Martin Pernollet

Field Summary

Fields

Modifier and Type	Field	Description
protected float[]	coloring
protected IColorMap	colormap
protected boolean	debug
protected int[]	elements
protected int[][]	elementsIndices
protected int[]	elementsLength
protected int[]	elementsStarts
protected static org.apache.logging.log4j.Logger	log
protected Normal.NormalMode	normalMode
protected float[]	normals
protected int	pointDimensions
protected float[]	points
protected int	verticesPerGeometry

Fields inherited from class org.jzy3d.plot3d.primitives.vbo.drawable.loaders.VBOBufferLoader

verifyUniquePoints

Constructor Summary

Constructors

Constructor	Description
VBOBufferLoaderForArrays(float[] points, int pointDimensions, int[][] elementIndices, IColorMap colormap, float[] coloring, float[] normals)
VBOBufferLoaderForArrays(float[] points, int pointDimensions, int[][] elementIndices, IColorMap colormap, float[] coloring, Normal.NormalMode normalMode)
VBOBufferLoaderForArrays(float[] points, int pointDimensions, int[] elementStarts, int[] elementLength, IColorMap colormap, float[] coloring, Normal.NormalMode normalMode)
VBOBufferLoaderForArrays(float[] points, int pointDimensions, int[] geometries, int verticesPerGeometry, IColorMap colormap, float[] coloring, Normal.NormalMode normalMode)

Method Summary

Modifier and Type	Method	Description
void	load(IPainter painter, DrawableVBO2 drawable)
protected void	verifyColorBufferSizeConsistency(DrawableVBO2 drawable, FloatBuffer verticeBuffer, FloatBuffer colorBuffer)

Methods inherited from class org.jzy3d.plot3d.primitives.vbo.drawable.loaders.VBOBufferLoader

computeAverageNormalsForEachVertex, computeSharedNormals, computeSharedNormals, computeSimpleNormals, isVerifyUniquePoints, loadColorBufferFromArray, loadColorBufferFromColormap, loadNormalsFromArray, loadVerticesFromArray, setVerifyUniquePoints, verifyDoublons

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Field Details

log

protected static org.apache.logging.log4j.Logger log

points

protected float[] points

pointDimensions

protected int pointDimensions

normals

protected float[] normals

elements

protected int[] elements

verticesPerGeometry

protected int verticesPerGeometry

elementsStarts

protected int[] elementsStarts

elementsLength

protected int[] elementsLength

elementsIndices

protected int[][] elementsIndices

colormap

protected IColorMap colormap

coloring

protected float[] coloring

normalMode

protected Normal.NormalMode normalMode

debug

protected boolean debug

Constructor Details

VBOBufferLoaderForArrays

public VBOBufferLoaderForArrays(float[] points,
 int pointDimensions,
 int[] elementStarts,
 int[] elementLength,
 IColorMap colormap,
 float[] coloring,
 Normal.NormalMode normalMode)

VBOBufferLoaderForArrays

public VBOBufferLoaderForArrays(float[] points,
 int pointDimensions,
 int[][] elementIndices,
 IColorMap colormap,
 float[] coloring,
 Normal.NormalMode normalMode)

VBOBufferLoaderForArrays

public VBOBufferLoaderForArrays(float[] points,
 int pointDimensions,
 int[][] elementIndices,
 IColorMap colormap,
 float[] coloring,
 float[] normals)

VBOBufferLoaderForArrays

public VBOBufferLoaderForArrays(float[] points,
 int pointDimensions,
 int[] geometries,
 int verticesPerGeometry,
 IColorMap colormap,
 float[] coloring,
 Normal.NormalMode normalMode)

Method Details

load

public void load(IPainter painter,
 DrawableVBO2 drawable)
          throws Exception

Specified by:

load in interface IGLLoader<DrawableVBO2>

Throws:

Exception

verifyColorBufferSizeConsistency

protected void verifyColorBufferSizeConsistency(DrawableVBO2 drawable,
 FloatBuffer verticeBuffer,
 FloatBuffer colorBuffer)
