Package org.jzy3d.plot3d.primitives.vbo.drawable

Class DrawableVBO2

java.lang.Object
org.jzy3d.plot3d.primitives.Drawable
org.jzy3d.plot3d.primitives.Wireframeable
org.jzy3d.plot3d.primitives.vbo.drawable.DrawableVBO2
All Implemented Interfaces:
IGLBindedResource, IGLRenderer, ISortableDraw
public class DrawableVBO2 extends Wireframeable implements IGLBindedResource
A DrawableVBO2 is able to efficiently draw a large collection of geometries.

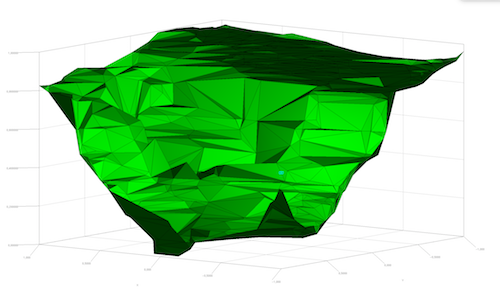

Effect of repeated vertices
Repeated vertices make all vertice normal being processed with the only three vertices of a triangle. A collection of neighbour triangles hence have normals producing sharp light reaction as bellow.

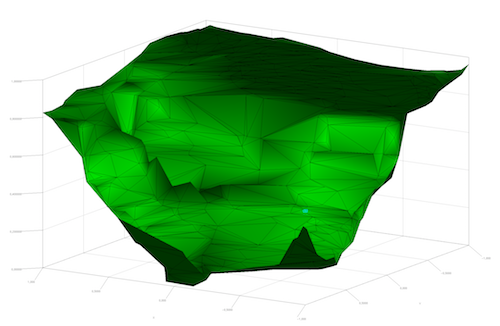

Shared vertices between triangles based on element index
Sharing vertices among triangles avoid repeating data, and also allows knowing all surrounding triangles to a point, hence allowing to compute a normal based on the mean of all triangles normal. This produce a smooth light reaction at the triangle edges.

Not processing normals in java
Is faster and yield to this light reaction.

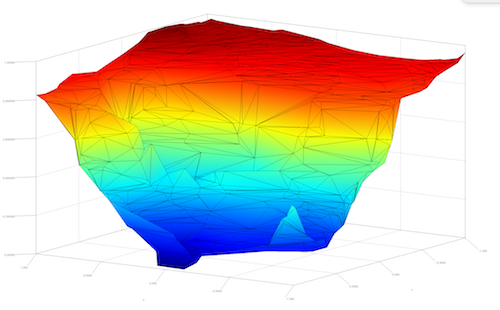

Using a colormap

Initializing DrawableVBO2


 AWTChartFactory f = new AWTChartFactory();
 Chart chart = f.newChart(Quality.Intermediate());

 int dimensions = TestMesh.DIMENSIONS;
 double[] vertices = TestMesh.makeArray4();
 int[] elements = TestMesh.makeElementArray4();
 int nVertices = TestMesh.nVertices(vertices);

 DrawableVBO2 vbo = new DrawableVBO2(vertices, dimensions, elements, null);
 chart.add(vbo);
 chart.open();

  • Field Details

    • log

      protected static org.apache.logging.log4j.Logger log

    • PRIMITIVE_RESTART_VALUE

      public static int PRIMITIVE_RESTART_VALUE
      Primitive restart is NOT working for now. Kept here for further debugging https://forum.jogamp.org/Using-glPrimitiveRestartIndex-to-declare-multiple-geometries-in-the-same-VBO-td4041307.html

    • loader

      protected IGLLoader<DrawableVBO2> loader

    • hasNormalInVertexArray

      protected boolean hasNormalInVertexArray

    • primitiveRestart

      protected boolean primitiveRestart

    • debug

      protected boolean debug

    • computeNormals

      protected boolean computeNormals

    • vertices

      protected FloatBuffer vertices
      The (direct) float buffer storing vertices in GPU. If none of the non mandatory element buffer are defined, will render with
      invalid @link
      GL#glDrawArrays()

    • normals

      protected FloatBuffer normals
      The (direct) float buffer storing normals in GPU.

    • colors

      protected FloatBuffer colors
      The (direct) float buffer storing colors in GPU.

    • elements

      protected IntBuffer elements
      The (non-mandatory) int buffer storing geometry indices in GPU. If defined, will render with
      invalid @link
      GL#glDrawElements()

    • elementsStarts

      protected IntBuffer elementsStarts
      The (non-mandatory) int buffer storing geometry indices in GPU. If defined, will render with
      invalid @link
      GL#glMultiDrawArrays

    • elementsLength

      protected IntBuffer elementsLength

    • elementsCount

      protected IntBuffer elementsCount
      The (non-mandatory) int buffer storing geometry indices in GPU. If defined, will render with
      invalid @link
      GL#glMultiDrawElements

    • elementsIndices

      protected com.jogamp.common.nio.PointerBuffer elementsIndices

    • vertexOffset

      protected int vertexOffset
      Byte shift between two vertices in the vertex buffer.

    • normalOffset

      protected int normalOffset
      Byte shift between to access a vertice normal in the vertex buffer.

    • elementSize

      protected int elementSize
      Number of element (geometries) in the element buffer.

    • firstCoordOffset

      protected int firstCoordOffset

    • colorArrayIds

      protected int[] colorArrayIds

    • vertexArrayIds

      protected int[] vertexArrayIds

    • normalArrayIds

      protected int[] normalArrayIds

    • elementArrayIds

      protected int[] elementArrayIds

    • hasMountedOnce

      protected boolean hasMountedOnce

    • QUAD_SIZE

      protected static int QUAD_SIZE

    • TRIANGLE_SIZE

      protected static int TRIANGLE_SIZE

    • GEOMETRY_SIZE

      protected static int GEOMETRY_SIZE
      number of vertext per geometry, 3 for triangles, 4 for quads

    • VERTEX_DIMENSIONS

      public static int VERTEX_DIMENSIONS
      number of dimensions for vertex, 3 for {x,y,z}

    • verticesPerGeometry

      protected int verticesPerGeometry
      number of vertex per geometry

    • colorChannels

      protected int colorChannels
      number of channels per color, 3 for {r,g,b}, 4 for {r,g,b,a}

    • glGeometryType

      protected int glGeometryType
      store the Geometry type in OpenGL, GL_TRIANGLES, GL_POLYGONS, etc

    • hasColorBuffer

      protected boolean hasColorBuffer

    • color

      protected Color color
      Default flat color for the complete geometry

    • normalMode

      protected Normal.NormalMode normalMode
      Should be true AND the element array provided to be able to process averaged normal. If any of these two conditions is not fullfilled, then one normal per point is computed.

  • Constructor Details

    • DrawableVBO2

      public DrawableVBO2(float[] points, int pointDimensions)
      Initialize a VBO object with arrays with no colormap and no vertex sharing scheme. The object has a uniform color given by setColor(Color). When using a Light, the object will have edges looking sharp as shown on the picture below. One can obtain smoother edges by avoiding vertex repetitions and instead define an element array indicating which unique vertex should be used in each triangle. See
      invalid @link
      {@link DrawableVBO2(double[], int, int[]).

      See Also:
      • invalid @see
        constructor for detailed arguments.

    • DrawableVBO2

      public DrawableVBO2(float[] points, int pointDimensions, IColorMap colormap)
      Initialize a VBO object with arrays with a colormap but no vertex sharing scheme.
      See Also:
      • invalid @see
        constructor for detailed arguments.

    • DrawableVBO2

      public DrawableVBO2(float[] points, int pointDimensions, int[] elements, IColorMap colormap)
      Initialize a VBO object with arrays with the following content.
      Parameters:
      points - contains an array of vertices [x1, y1, z1, x2, y2, z2, x3, y3, z3, x4, y4, z4, ..]
      pointDimensions - indicate the number of dimension in the array for each vertex, as the input array may contain extra dimensions for each vertex, e.g. [x1, y1, z1, m1, x2, y2, z2, m2, ...]
      elements - contains reference to points that may be used in several elements. E.g. the array [1, 3, 2, 4, 3, 2, ...] indicates that the two first triangles are sharing vertices 3 and 2. This assume the user of this class is aware that this class will build triangles made of 3 vertices each. It may be null, in that case the points array will be drawn as a sequence of vertices defining elements, without sharing vertices between elements.
      colormap - defines how to color vertices. It may be null, in that case the object is colored by setColor(Color) adn shaded by Light

    • DrawableVBO2

      public DrawableVBO2(float[] points, int pointDimensions, int[] elements)
      Initialize a VBO object with arrays with no colormap. The object has a uniform color given by setColor(Color). Providing an element array allows defining which points form a triangle without having to repeat these points. When such constructor is used, shared vertices allow computing shared normals for each point, hence each point normal is computed as a mean of the normals of all triangles that share this point. The result is smoother light transition between polygons, which differ from the light transition of repeated-vertex schemes as processed when the element array is null (or when invoking
      invalid @link
      DrawableVBO2(double[], int)

      See Also:
      • invalid @see
        constructor for detailed arguments.

    • DrawableVBO2

      public DrawableVBO2(float[] points, int pointDimensions, int[] elements, IColorMap colormap, Normal.NormalMode normalMode)

    • DrawableVBO2

      public DrawableVBO2(float[] points, int pointDimensions, int[] elements, int elementSize, float[] colors)
      This constructor will only work correctly for triangle geometry. The elementSize parameter is mainly used for processing normals. If one wish to draw multiple polygons of 4 or more point, then use a loader suitable for this.
      Parameters:
      points -
      pointDimensions -
      elements -
      elementSize -
      colors -

    • DrawableVBO2

      public DrawableVBO2(float[] points, int[] elements, int elementSize, float[] colors)

    • DrawableVBO2

      public DrawableVBO2(float[] points, int[] elementStart, int[] elementLength, float[] colors)

    • DrawableVBO2

      public DrawableVBO2(float[] points, int pointDimensions, int[] elementStart, int[] elementLength, float[] colors)

    • DrawableVBO2

      public DrawableVBO2(List<Polygon> polygons)
      Build a VBO out of simple polygons. Assume the same number of vertices for all polygons given the list.

    • DrawableVBO2

      public DrawableVBO2(Composite composite)
      Build a VBO out of a composite made of simple polygons. Assume the same number of vertices for all polygons given the list.

    • DrawableVBO2

      public DrawableVBO2(float[] points, int[][] elementIndices, float[] colors)

    • DrawableVBO2

      public DrawableVBO2(float[] points, int[][] elementIndices, float[] colors, float[] normals)

    • DrawableVBO2

      public DrawableVBO2(float[] points, int[][] elementIndices, float[] colors, Normal.NormalMode normalMode)

    • DrawableVBO2

      public DrawableVBO2(float[] points, int pointDimensions, int[][] elementIndices, float[] colors)

    • DrawableVBO2

      public DrawableVBO2(IGLLoader<DrawableVBO2> loader)
      Initialize a VBO object with a customizable loader.

  • Method Details

    • fromComposites

      public static DrawableVBO2 fromComposites(List<Composite> composites)
      Build a VBO out of a list of composites made of simple polygons. Assume the same number of vertices for all polygons given the list.

    • makeLoader

      public static VBOBufferLoaderForPolygons makeLoader(List<Polygon> polygons, int verticesPerGeometry)

    • makeLoader

      public static IGLLoader<DrawableVBO2> makeLoader(float[] points, int pointDimensions, int[][] elementIndices, float[] colors, Normal.NormalMode perVertex)

    • makeLoader

      public static IGLLoader<DrawableVBO2> makeLoader(float[] points, int pointDimensions, int[][] elementIndices, float[] colors, float[] normals)

    • makeLoader

      public static IGLLoader<DrawableVBO2> makeLoader(float[] points, int pointDimensions, int[] elements, int elementSize, IColorMap colormap, float[] coloring, Normal.NormalMode normalMode)

    • makeLoader

      public static IGLLoader<DrawableVBO2> makeLoader(float[] points, int elementSize)

    • makeLoader

      public static IGLLoader<DrawableVBO2> makeLoader(float[] points, int pointDimensions, int[] elementStart, int[] elementLength, float[] coloring, Normal.NormalMode normalMode)

    • mount

      public void mount(IPainter painter)
      Invoke the loader. This is called by Graph when the application initialize and a GL context is available for feeding the GPU with arrays.
      Specified by:
      mount in interface IGLBindedResource

    • hasMountedOnce

      public boolean hasMountedOnce()
      Description copied from interface: IGLBindedResource
      Return true if mount(...) has been called at least one time
      Specified by:
      hasMountedOnce in interface IGLBindedResource

    • setData

      public void setData(IPainter painter, FloatBuffer vertices, FloatBuffer normals, FloatBuffer colors, BoundingBox3d bounds)

    • setData

      public void setData(IPainter painter, IntBuffer elements, FloatBuffer vertices, FloatBuffer normals, FloatBuffer colors, BoundingBox3d bounds)
      Configure a VBO with vertices, colors, and indices describing vertex references for building triangles. This is supposed to be called by the IGLLoader when mount(IPainter) is invoked. The result is that all non null provided buffers are binded to the GPU.
      See Also:
      • invalid @see
        constructor documentation for argument description.

    • setData

      public void setData(IPainter painter, IntBuffer elementsStarts, IntBuffer elementsLength, FloatBuffer vertices, FloatBuffer normals, FloatBuffer colors, BoundingBox3d bounds)

    • setData

      public void setData(IPainter painter, IntBuffer elementsCount, com.jogamp.common.nio.PointerBuffer elementsIndices, FloatBuffer vertices, FloatBuffer normals, FloatBuffer colors, BoundingBox3d bounds)

    • registerVertexAndNormalOffsets

      protected void registerVertexAndNormalOffsets()

    • registerVertices

      protected void registerVertices(com.jogamp.opengl.GL gl, FloatBuffer newVertices)

    • registerNormals

      protected void registerNormals(com.jogamp.opengl.GL gl, FloatBuffer newNormals)

    • registerColors

      protected void registerColors(com.jogamp.opengl.GL gl, FloatBuffer newColors)

    • registerElements

      protected void registerElements(com.jogamp.opengl.GL gl, IntBuffer newElements)

    • draw

      public void draw(IPainter painter)
      Description copied from class: Drawable
      Call OpenGL2 routines for rendering the object.
      Specified by:
      draw in interface IGLRenderer
      Specified by:
      draw in class Drawable

    • doDrawElements

      protected void doDrawElements(IPainter painter)
      Perform rendering of this VBO.
      Parameters:
      painter - holds a GL instance to invoke the GPU.

    • doDrawGeometries

      protected void doDrawGeometries(com.jogamp.opengl.GL2 gl2)
      Actually do draw by applying the GL geometry defined by glGeometryType. Either use non indexed mode, simple index mode, or multi-index mode. Expect glPolygonMode to be defined before to define if we are drawing wireframe or filling polygon.

    • applyPrimitiveRestartIfEnabled

      protected void applyPrimitiveRestartIfEnabled(com.jogamp.opengl.GL gl)
      Experimental - not working yet How it should work

    • isHasColorBuffer

      public boolean isHasColorBuffer()

    • setHasColorBuffer

      public void setHasColorBuffer(boolean hasColorBuffer)

    • getColor

      public Color getColor()

    • setColor

      public void setColor(Color color)

    • hasNormalInVertexArray

      public boolean hasNormalInVertexArray()

    • setHasNormalInVertexArray

      public void setHasNormalInVertexArray(boolean hasNormal)

    • getColorChannels

      public int getColorChannels()

    • setColorChannels

      public void setColorChannels(int colorChannels)

    • applyGeometryTransform

      public void applyGeometryTransform(Transform transform)
      Specified by:
      applyGeometryTransform in class Drawable

    • updateBounds

      public void updateBounds()
      Specified by:
      updateBounds in class Drawable

    • getGL

      protected com.jogamp.opengl.GL getGL(IPainter painter)

    • getVertices

      public FloatBuffer getVertices()

    • getNormals

      public FloatBuffer getNormals()

    • getColors

      public FloatBuffer getColors()

    • getElements

      public IntBuffer getElements()

    • getElementsStarts

      public IntBuffer getElementsStarts()

    • getElementsLength

      public IntBuffer getElementsLength()

    • getElementsCount

      public IntBuffer getElementsCount()

    • getElementsIndices

      public com.jogamp.common.nio.PointerBuffer getElementsIndices()

    • getColorArrayIds

      public int[] getColorArrayIds()

    • getVertexArrayIds

      public int[] getVertexArrayIds()

    • getNormalArrayIds

      public int[] getNormalArrayIds()

    • getElementArrayIds

      public int[] getElementArrayIds()

    • getGLGeometryType

      public int getGLGeometryType()

    • setGLGeometryType

      public void setGLGeometryType(int glGeometryType)

    • getVerticesPerGeometry

      public int getVerticesPerGeometry()

    • setVerticesPerGeometry

      public void setVerticesPerGeometry(int geometrySize)

    • isPrimitiveRestart

      public boolean isPrimitiveRestart()
      Kept for prototyping, but not supported for now

    • setPrimitiveRestart

      public void setPrimitiveRestart(boolean primitiveRestart)
      Kept for prototyping, but not supported for now. Do not change this setting. @see applyPrimitiveRestartIfEnabled(GL)

    • isComputeNormals

      public boolean isComputeNormals()

    • setComputeNormals

      public void setComputeNormals(boolean computeNormals)
      If false, normals are not computed and light processing might depend on GPU capabilities

    • setColors

      public void setColors(float[] colors)
      Set the next color buffer to apply to this VBO. The color will be updated at next rendering, which may be forced with Chart.render().

    • debugMultiDrawElements

      protected void debugMultiDrawElements()

    • debugMultiDrawArray

      protected void debugMultiDrawArray()
