Package org.jzy3d.plot3d.rendering.canvas

Class EmulGLCanvas

    • Field Detail

      • TO_BE_CHOOSEN_REPAINT_WITH_FLUSH

        public static final boolean TO_BE_CHOOSEN_REPAINT_WITH_FLUSH
        Specify actual way of forcing repaint
        • if true : manual
        • if false : trigger component.resize event to force resize + view.render + glFlush + swap image
        See Also:
        Constant Field Values

      • view

        protected View view

      • debugEvents

        protected boolean debugEvents
        set to TRUE to show in console events of the component (to debug GLUT)

      • profileDisplayMethod

        protected boolean profileDisplayMethod
        set to TRUE to overlay performance info on top left corner

      • profileDisplayTimer

        protected TicToc profileDisplayTimer

      • profileDisplayFont

        protected Font profileDisplayFont

      • profileDisplayCount

        protected int profileDisplayCount

      • profileInfo

        protected List<org.jzy3d.plot3d.rendering.canvas.EmulGLCanvas.ProfileInfo> profileInfo

      • monitor

        protected Monitor monitor

      • lastRenderingTimeMs

        protected double lastRenderingTimeMs

    • Constructor Detail

      • EmulGLCanvas

        public EmulGLCanvas​(IChartFactory factory,
                    Scene scene,
                    Quality quality)
        Initialize a canvas for rendering 3D

    • Method Detail

      • shouldPrintEvent

        protected boolean shouldPrintEvent​(AWTEvent e)

      • init

        protected void init​(int width,
                    int height)
        Equivalent to registering a Renderer3d in native canvas.

      • initView

        protected void initView()

      • initGLUT

        protected void initGLUT​(int width,
                        int height)

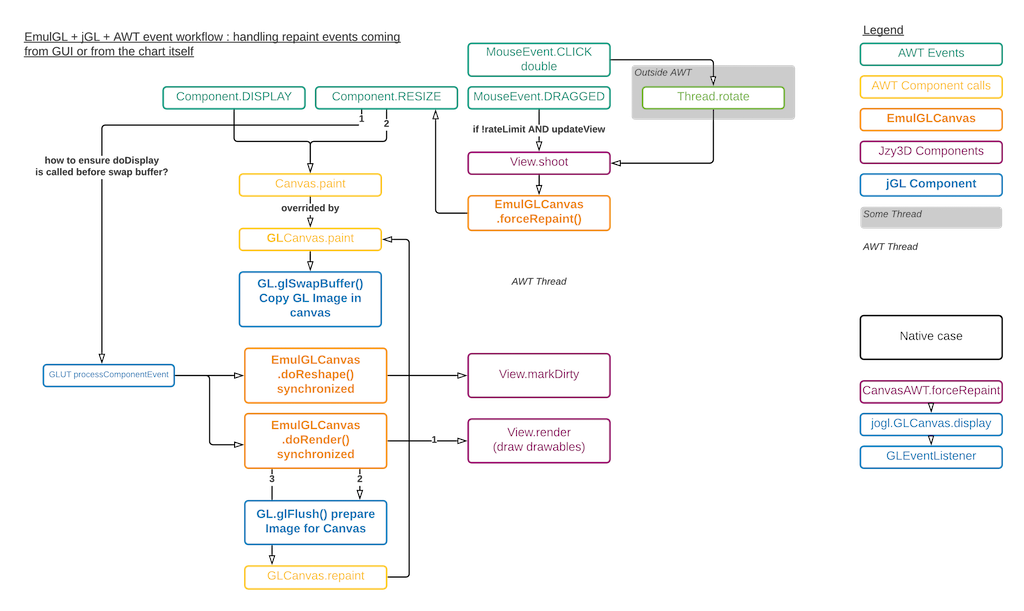

        Configure GLUT callback which yield to the below flow diagram

      • paint

        public void paint​(Graphics g)
        This overrides the GLCanvas hence Canvas methods to copy the image of the 3D scene as generated while GL.glFlush(). It is called when the application needs to paint the canvas, which assume a rendering has already been process by doRender() which produce an image that the canvas can use for fast pixel swap. doRender() on its side is triggered when GLUT thinks it is relevant. This may occur because EmulGLCanvas triggered a ComponentEvent.COMPONENT_RESIZED event.
        Overrides:
        paint in class GLCanvas

      • forceRepaint

        public void forceRepaint()
        Can be used to update image if camera has changed position. (usually called by View.shoot()) Warning if this is invoked by a thread external to AWT, this may redraw GL while GL is already used by AWT, which would turn GL into an inconsistent state.
        Specified by:
        forceRepaint in interface ICanvas
        Overrides:
        forceRepaint in class GLCanvas

      • doRender

        public void doRender()
        Triggers an atomic rendering of a frame, measure rendering performance and update the status of rendering (active or not). This method is callback registered in with GLUT.glutDisplayFunc(String) which will be called when OpenGL need to update display. OpenGL updates as soon as the component that GLUT listen to (which is this EmulGLCanvas triggers a ComponentEvent.COMPONENT_RESIZED event. Performance measurement can be seen on screen if setProfileDisplayMethod(boolean) was set to true OR can be collected by a Monitor defined by add(Monitor). This method is synchronized to prevent multiple concurrent calls to doDisplay which might make jGL get crazy with GL state consistency : GL states must be consistent during a complete rendering pass, and should not be modified by a second rendering pass in the middle of the first one. Consistency may be on drawing a complete geometry in appropriate order (glBegin, glVertex, glEnd) or in the way OpenGL 1.0 fixed pipeline is cleanly handled. In addition, the display method has a isRenderingFlag so that external components may known that the canvas is currently rendering or not. This allows ignoring a rendering query in case the canvas is not ready for working. This is different from making use of synchronized (which lead to a queue of calls to be resolved) in that one may simply not append work to do according to the status of the canvas.

      • printCallTrace

        public void printCallTrace()

      • printCallTrace

        public void printCallTrace​(int from,
                           String filterLine)
        Print stack but drops any class.method name not containing the filter (in case it is not null)

      • doReshape

        public void doReshape​(int w,
                      int h)
        Handle resize events emitted by GLUT. GLUT.processComponentEvent(ComponentEvent) is calling reshape handler (this method) THEN the display handler ({@link #doDisplay()), so this method will only inform {@link GLUT} and View that window size changed.

      • doMotion

        public void doMotion​(int x,
                     int y)
        Handle mouse events emitted by GLUT. Most probably not registered as mouse already handled by Jzy3D.

      • updatePainterWithGL

        protected void updatePainterWithGL()
        Register EmulGLPainter.

      • getView

        public View getView()
        Description copied from interface: ICanvas
        Returns a reference to the held view.
        Specified by:
        getView in interface ICanvas

      • getRendererWidth

        public int getRendererWidth()
        Description copied from interface: ICanvas
        Returns the renderer's width, i.e. the display width.
        Specified by:
        getRendererWidth in interface ICanvas

      • getRendererHeight

        public int getRendererHeight()
        Description copied from interface: ICanvas
        Returns the renderer's height, i.e. the display height.
        Specified by:
        getRendererHeight in interface ICanvas

      • dispose

        public void dispose()
        Description copied from interface: ICanvas
        Performs all required cleanup when destroying a Canvas.
        Specified by:
        dispose in interface ICanvas

      • setPixelScale

        public void setPixelScale​(float[] scale)
        Description copied from interface: ICanvas
        Defines pixel scale. On MacOS Retina displays, a X*Y chart uses a (X*2)*(Y*2) viewport. This makes some calculation based on viewport (such as Camera.screenToModel(IPainter, org.jzy3d.maths.Coord3d) output wrong result. When running on Retina display, those two options fixed buggy mouse selections on Retina:
        • setPixelScale(new float[]{0.5f,0.5f})
        • setPixelScale(new float[] { ScalableSurface.IDENTITY_PIXELSCALE, ScalableSurface.IDENTITY_PIXELSCALE })
          Specified by:
          setPixelScale in interface ICanvas

        • getPixelScale

          public Coord2d getPixelScale()
          Description copied from interface: ICanvas
          Provide pixel scale as feasible by the Hardware, OS, and JVM, independently of what was asked by ICanvas.setPixelScale(float[]). Hence the two functions may not be consistent together.
          Specified by:
          getPixelScale in interface ICanvas

        • addMouseController

          public void addMouseController​(Object o)
          Description copied from interface: ICanvas
          A generic interface for mouse listener to remain Windowing toolkit independant. Implementation of this method should simply cast the input assuming it will correspond to canvas-compatible mouse listener.
          Specified by:
          addMouseController in interface ICanvas

        • removeMouseController

          public void removeMouseController​(Object o)
          Description copied from interface: ICanvas
          A generic interface for key listener to remain Windowing toolkit independant. Implementation of this method should simply cast the input assuming it will correspond to canvas-compatible key listener.
          Specified by:
          removeMouseController in interface ICanvas

        • addKeyController

          public void addKeyController​(Object o)
          Description copied from interface: ICanvas
          A generic interface for mouse listener to remain Windowing toolkit independant. Implementation of this method should simply cast the input assuming it will correspond to canvas-compatible mouse listener.
          Specified by:
          addKeyController in interface ICanvas

        • removeKeyController

          public void removeKeyController​(Object o)
          Description copied from interface: ICanvas
          A generic interface for key listener to remain Windowing toolkit independant. * Implementation of this method should simply cast the input assuming it will correspond to canvas-compatible key listener.
          Specified by:
          removeKeyController in interface ICanvas

        • firePixelScaleChanged

          protected void firePixelScaleChanged​(double pixelScaleX,
                                     double pixelScaleY)

        • paintProfileInfo

          protected void paintProfileInfo​(BufferedImage glImage)
          Render profile on top of an image (probably the image of the GL scene) previously collected while {@link EmulGLCanvas#doRender(). Painting profile info is synchronized on the profile info list to ensure it is not modified while drawing (which occurs if synchronization is disabled). Despite we did not observed any lag due to such rendering, it is important to keep in mind that displaying profile information requires a synchronized access to this info list which is on the other side synchronized to protect exporting rendering info of the last call to doRender().

        • profile

          protected void profile​(double mili)

        • profile

          protected void profile​(String message,
                       int x,
                       int y,
                       Color c)
          Draw a 2d text at the given position

        • profileClear

          protected void profileClear()

        • isDebugEvents

          public boolean isDebugEvents()

        • setDebugEvents

          public void setDebugEvents​(boolean debugEvents)

        • isProfileDisplayMethod

          public boolean isProfileDisplayMethod()

        • setProfileDisplayMethod

          public void setProfileDisplayMethod​(boolean profileDisplayMethod)

        • checkAlphaChannelOfColorBuffer

          protected void checkAlphaChannelOfColorBuffer​(EmulGLPainter painter)

        • printCountGLBegin

          protected void printCountGLBegin()

        • resetCountGLBegin

          protected void resetCountGLBegin()

        • monitorRenderingTime

          protected void monitorRenderingTime​(Monitor monitor,
                                    double mili)
