Package org.jzy3d.plot3d.text.renderers

Class TextRenderer

java.lang.Object

org.jzy3d.plot3d.text.AbstractTextRenderer

org.jzy3d.plot3d.text.renderers.TextRenderer

All Implemented Interfaces:

ITextRenderer

Direct Known Subclasses:

AxisBox2d.RotatedTextBitmapRenderer

public class TextRenderer
extends AbstractTextRenderer
implements ITextRenderer

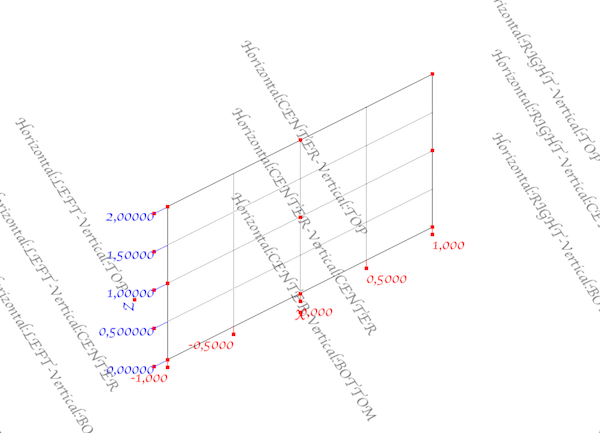

The ITextRenderer computes text layout according to Horizontal, Vertical settings, text length, font size and text position. This is achieved with the help of TextLayout processor. It can be given a 2D offset in screen coordinates and a 3D offset in world coordinates that are applied after the initial layout is processed according to the settings, the text length, the font size and the text position. It supports Unicode characters and all fonts made available by Font. Rendering text relies on IPainter.drawText(Font, String, Coord3d, Color, float) which was introduced as of Jzy3D 2.0 and offers much more flexibility than the initial simple IPainter.glutBitmapString(int, String) which only support two fonts. Rotation of a text is always made from the center of the text, whatever the LEFT/CENTER/RIGHT layout of the text, which lead to all these possible layouts.

This image was generated with

invalid @link

ITTest_Text#main()

Field Summary

Fields

Modifier and Type	Field	Description
protected TextLayout	layout
protected static org.apache.logging.log4j.Logger	LOGGER
protected Color	positionColor
protected float	positionWidth
protected boolean	showPosition
protected boolean	useGlutBitmap

Fields inherited from class org.jzy3d.plot3d.text.AbstractTextRenderer

NO_ROTATION, NO_SCENE_OFFSET, NO_SCREEN_OFFSET, spaceTransformer

Constructor Summary

Constructors

Constructor	Description
TextRenderer()

Method Summary

Modifier and Type	Method	Description
protected BoundingBox3d	computeTextBounds(IPainter painter, Font font, Coord3d posScreenShifted, float strlen)
BoundingBox3d	drawText(IPainter painter, Font font, String text, Coord3d position, float rotation, Horizontal halign, Vertical valign, Color color, Coord2d screenOffset, Coord3d sceneOffset)	Draw a string at the specified position and return the 3d volume occupied by the string according to the current Camera configuration.
Color	getPositionColor()
float	getPositionWidth()
boolean	isShowPosition()
boolean	isUseGlutBitmap()
void	setPositionColor(Color positionColor)
void	setPositionWidth(float positionWidth)
void	setShowPosition(boolean showPosition)
void	setUseGlutBitmap(boolean useGlutBitmap)
protected Coord3d	to3D(IPainter painter, Coord3d screen)	Convert a 2D screen position to 3D world coordinate

Methods inherited from class org.jzy3d.plot3d.text.AbstractTextRenderer

drawText, drawText, drawText, drawText, drawText, drawText, getSpaceTransformer, setSpaceTransformer

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Methods inherited from interface org.jzy3d.plot3d.text.ITextRenderer

drawText, drawText, drawText, drawText, drawText, drawText, getSpaceTransformer, setSpaceTransformer

Field Details

LOGGER

protected static org.apache.logging.log4j.Logger LOGGER

layout

protected TextLayout layout

showPosition

protected boolean showPosition

positionColor

protected Color positionColor

positionWidth

protected float positionWidth

useGlutBitmap

protected boolean useGlutBitmap

Constructor Details

TextRenderer

public TextRenderer()

Method Details

drawText

public BoundingBox3d drawText(IPainter painter,
 Font font,
 String text,
 Coord3d position,
 float rotation,
 Horizontal halign,
 Vertical valign,
 Color color,
 Coord2d screenOffset,
 Coord3d sceneOffset)

Draw a string at the specified position and return the 3d volume occupied by the string according to the current Camera configuration.

Specified by:

drawText in interface ITextRenderer

to3D

protected Coord3d to3D(IPainter painter,
 Coord3d screen)

Convert a 2D screen position to 3D world coordinate

computeTextBounds

protected BoundingBox3d computeTextBounds(IPainter painter,
 Font font,
 Coord3d posScreenShifted,
 float strlen)

isShowPosition

public boolean isShowPosition()

setShowPosition

public void setShowPosition(boolean showPosition)

getPositionColor

public Color getPositionColor()

setPositionColor

public void setPositionColor(Color positionColor)

getPositionWidth

public float getPositionWidth()

setPositionWidth

public void setPositionWidth(float positionWidth)

isUseGlutBitmap

public boolean isUseGlutBitmap()

setUseGlutBitmap

public void setUseGlutBitmap(boolean useGlutBitmap)
