Package org.jzy3d.plot3d.primitives.axis

Class AxisLabelRotator

java.lang.Object

org.jzy3d.plot3d.primitives.axis.AxisLabelRotator

public class AxisLabelRotator
extends Object

An helper class to process the orientation of text according to a driving axis defined by 2 3D or 2D points (already resulting from a screen projection).

Author:

Martin Pernollet

Nested Class Summary

Nested Classes

Modifier and Type	Class	Description
static class	AxisLabelRotator.TextLayout

Constructor Summary

Constructors

Constructor	Description
AxisLabelRotator()

Method Summary

Modifier and Type	Method	Description
float	computeSegmentRotation(Coord3d p1, Coord3d p2)	Compute the 2D orientation (rotation) of an axis as it is currently displayed to screen (which may change according to camera viewpoint) Schema source
float	computeSegmentRotation2D(IPainter painter, Coord3d[] axisSegment)	Compute the 2D orientation (rotation) of an axis made of 2 3D points.
AxisLabelRotator.TextLayout	computeTextLayout(IPainter painter, Coord3d[] segment3D, Coord3d center3D, Coord3d label3D, float offset)	Compute the 2D offset and rotation required to have axis label cleanly fitting around and axis and being parallel to the axis (as displayed in 2D on screen).

Methods inherited from class java.lang.Object

clone, equals, finalize, getClass, hashCode, notify, notifyAll, toString, wait, wait, wait

Constructor Detail

AxisLabelRotator

public AxisLabelRotator()

Method Detail

computeSegmentRotation2D

public float computeSegmentRotation2D(IPainter painter,
                                      Coord3d[] axisSegment)

Compute the 2D orientation (rotation) of an axis made of 2 3D points. The 2D orientation is processed according to the viewpoint on this segment. Schema source

• segment[0] : 3D world coordinates of the starting point of the axis segment.
• segment[1] : 3D world coordinates of the ending point of the axis segment.

Returns:

computeSegmentRotation

public float computeSegmentRotation(Coord3d p1,
                                    Coord3d p2)

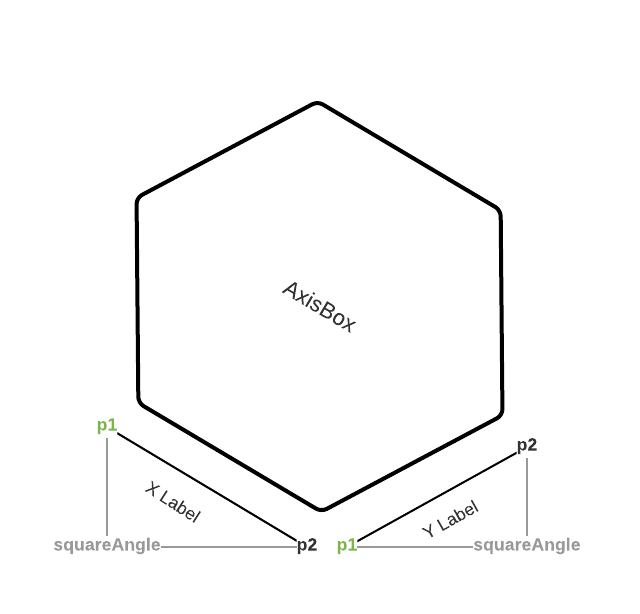

Compute the 2D orientation (rotation) of an axis as it is currently displayed to screen (which may change according to camera viewpoint) Schema source

Parameters:

p1 - 2D screen coordinates of the starting point of the axis segment.

p2 - 2D screen coordinates of the ending point of the axis segment. NB : the third dimension of the screen coordinates is the depth of the point compared to camera. This may be usefull for guessing the direction of the axis : going toward or away from the viewer according to point order.

Returns:

rotation in radian

computeTextLayout

public AxisLabelRotator.TextLayout computeTextLayout(IPainter painter,
                                                     Coord3d[] segment3D,
                                                     Coord3d center3D,
                                                     Coord3d label3D,
                                                     float offset)

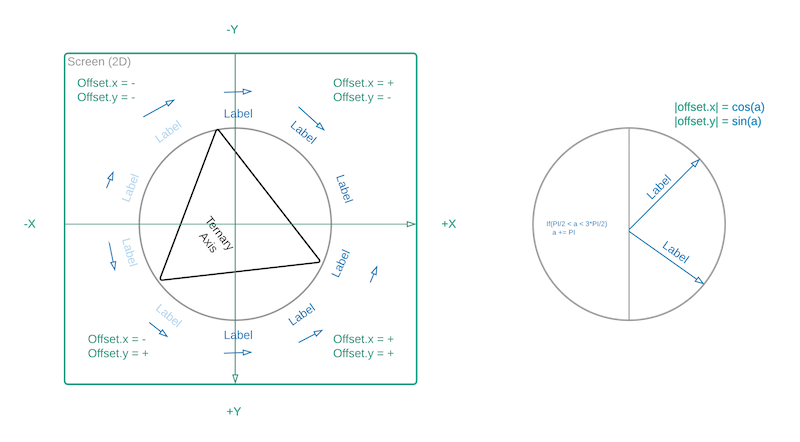

Compute the 2D offset and rotation required to have axis label cleanly fitting around and axis and being parallel to the axis (as displayed in 2D on screen). The below schema decypher the axis label rotation processing of this method : Schema source

Parameters:

painter -

segment3D - a pair of 3D coordinates describing the axis segment.

center3D - the center of the axis collection (for a ternary axis, the center of a bottom or top triangle).

label3D - the initial 3D position of the label that should be rotated and shifted.

offset - the expected axis-label distance in pixels.

Returns:

a pair of values indicating the (x,y) offset being either positive or negative, and a rotation for the label to remain parallel to the input segment.
